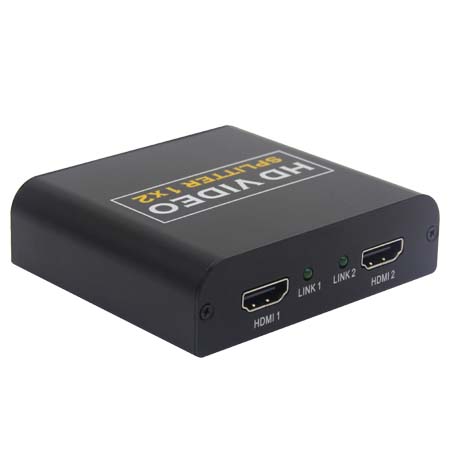

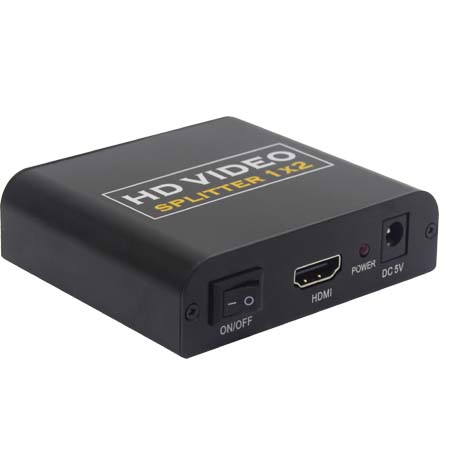

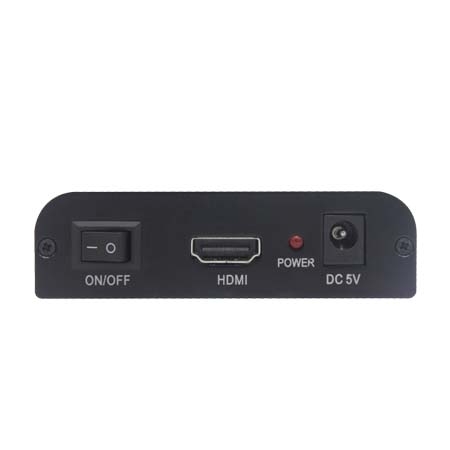

PANEL INTRODUCTION
FEATURES
1、Supports HDMI high Speed HDMI Cable output.
2、Supports highest video resolution 1080p.
3、Supports PC/ PS4/PS3/XBOX360/TV etc.
4 Supports 12bit per channel (36bit all channel) deep color.
5、Digital Audio input/output.
6、A complete module,do not need to install.
7、The double transmission speed up to 2.5Gbps.
8、Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD).
SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Input Video Signal |
0.5-1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Input connection |
HDMI A female(19pin) |
|
Output connection |
HDMI A female(19pin) |
|
HDMI video input format |
480i/576i/480p/576p/720p/1080i/1080P |
|
HDMI video output format |
480i/576i/480p/576p/720p/1080i/1080P |
|
Operating Frequency |
|
|
Vertical Frequency Range |
50/60Hz |
|
Input video Amplifier Bandwidth |
2.25Gbps/225MHz |
|
Mechanical |
|
|
Size(LxWxH) |
85x72x |
|
Weight(Net) |
|
|
Environmentalc |
|
|
Operating Temperature |
-40 to + |
|
Operating Humidity |
5% to 90 % RH (no condensation) |
|
Storage Temperature |
-10 to + |
|
Storage Humidity |
5% to 95 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
DC 5V |
|
Power consumption(Max) |
5W |
|
Accessories Adapter |
|
|
AC Power Adapter |
US standard, UK standard and so on |
|
User Manual |
English Version |
