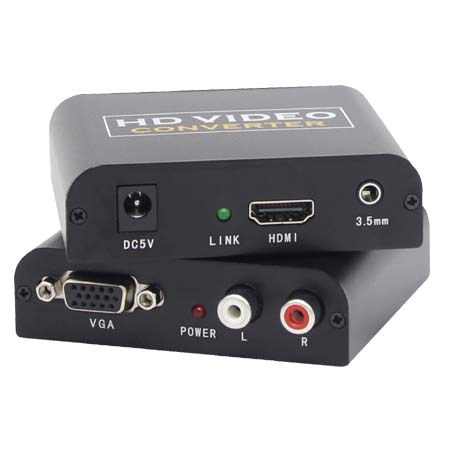

This kind of HDMI to VGA+R/L&
When HDMI signals from PS4/PS3/XBOX ONE/ XBOX360, Blu-ray DVD, HD set-top boxes, CRT / LED Display ect, you can easily watch HD Video on the normal TV which has no HDMI Interface but has VGA interface.
It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

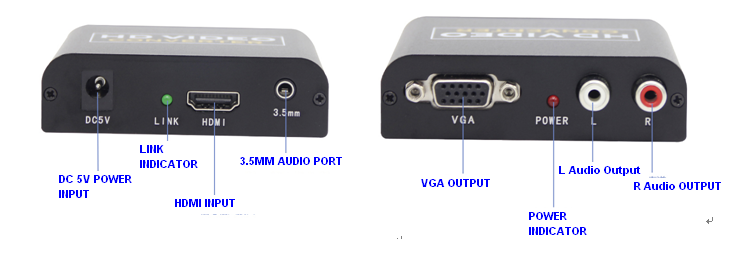

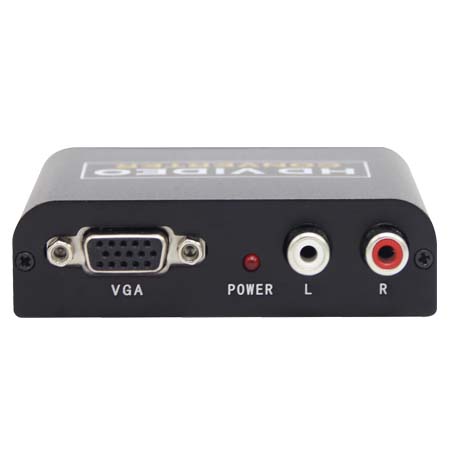

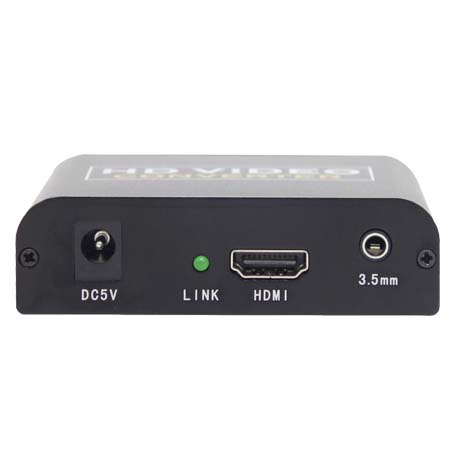

PANEL INTRODUCTION
FEATURES
The series of the HDMI Amplifier Switcher have many features that enable them to perform in a superior manner. among those features you will find:
1、 Easy to Use: Install in seconds, no need of setting.
2、 Conversion: It could convert complete HDMI into VGA video and R/L audio output.
3、 Support HDCP 1.2
4、 Support 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input.
5、 Suppor Analogue Video output up to UXGA and 1080p with 10-bit DAC
6、 Led indicates signal and power mode.
7、 Power supply (please refer to technical parameter).
SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Input Video Signal |
0.5-1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Input connection |
HDMI A female(19pin) |
|
Output connection |
VGA, R/L Audio |
|
HDMI video input format |
480i/576i/480p/576p/720p/1080i/1080P |
|
VGA video output format |
480i/576i/480p/576p/720p/1080i/1080P |
|
Audio output format |
2 channel LPCM |
|
Operating Frequency |
|
|
|
50/60Hz |
|
Input video Amplifier Bandwidth |
2.25Gbps/225MHz |
|
Mechanical |
|
|
Size(LxWxH) |
85x72x |
|
Weight(Net) |
|
|
Environmentalc |
|
|
Operating Temperature |
-40 to + |
|
Operating Humidity |
5% to 90 % RH (no condensation) |
|
Storage Temperature |
-10 to + |
|
Storage Humidity |
5% to 95 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
DC 5V |
|
Power consumption(Max) |
5W |
|
Accessories Adapter |
|
|
AC Power Adapter |
|
|
User Manual |
English Version |

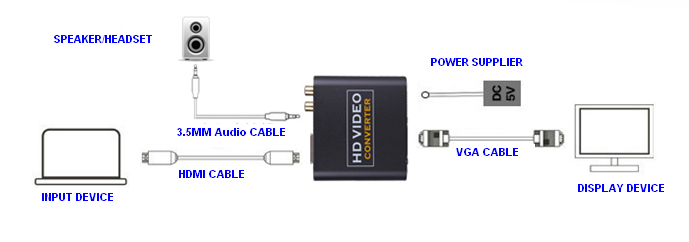

CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect have been turned off.
1、 Connect the HDMI input from source device to this Converter.(Inputcables are optional)
2、 Connect the VGA and R/L audio output of this product to the display device.
3、 Insert the DC side of 5V power supply into and then connect the AC side of the power supply into the wall outlet.
4、 Power on all connected devices,choose the input of the display device to its VGA channel.
5、 The image does not need to be adjusted.This Converter will position it automatically.
