Wii / PS3 VGA Cable
Wii / PS3 VGA Cable

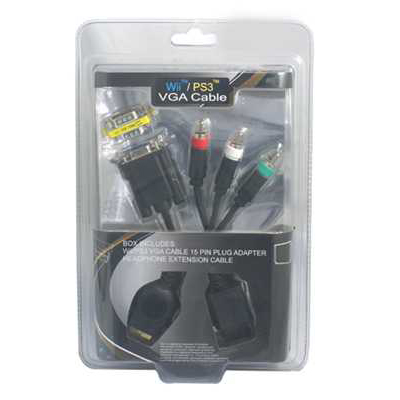

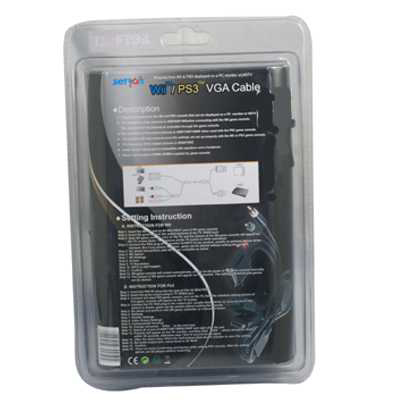

Product name : Wii / PS3 VGA Cable
Item : JT-1004701
Price :
Details of Wii / PS3 VGA Cable :
  • Transfer pictures from the Wii and PS3 console that can be displayed on a PC  monitor or HDTV.
  • The resolution of the pictures is 480P(640*480)when connecting with the  Wii game console. The resolution of the pictures is controlled through the game console.
  • The resolution of the output pictures is 480P/720P/1080P when used with the PS3 game console.
  • The product will only properly once the settings are set up properly with the Wii or PS3 game console.
  • The frequency of the output pictures is 50/60/75HZ
    Audio output signal port is compatible with speakers and a headpone.
    Power consumption:150MA-200MA,supplied by game console.

    A. INSTRUCTION FOR WII

    Step 1. Insert the Wii AV port to AV MULTIOUT port of Wii game console
    Step 2. Insert the green plug in the output terminal of the TV VIDEO port
    Step 3. Start Wii game console, turn on the TV, and the picture of the Wii game console will appear on
                the TV screen,(Note: The pictures on the TV screen is white and black)
    Step 4. Connect the VGA plug of PC monitor or HDTV to our product, usually no pictures appear at the
                 moment. But if any picture is shown, game can be started without setting the console.
    Step 5. Go ahead and perform with Wii game controller as below.
    Step 6. Wii Option
    Step 7. Wii Settings
    Step 8. Screen
    Step 9. TV Resolution
    Step 10. EDTV or HDTV(480P)
    Step 11. Confirm
    Step 12. Wii game console will restart automatically, or turn on the power of Wii game console manually.
    Step 13. The picture of Wii game console will appear on PC monitor. The setting is finished and games
                  can be started.

    B. INSTRUCTION FOR Ps3

    Step 1. Insert the PS3 AV plug into the port of PS3 AV MULTIOUT.
    Step 2. Insert the green output plug in TV VIDEO port
    Step 3. Connect and start PS3 game console, turn on the TV, then the colorless stating picture of
                 Ps3 game console will appear on the TV screen.
    Step 4. Connect the PC VGA plug to the output port, usually there will be no pictures. but if any
                 picture is shown, game can be started without setting the console.
    Step 5. Go ahead and perform with Wii game controller as instructed below.
    Step 6. Settings
    Step 7. Display Settings
    Step 8. Video Output Settings
    Step 9. Component/D Terminal
    Step 10. Change and press "Enter" to the next step
    Step 11. Select all of part of 480P,720P,1080I&1080P and right click the pad
    Step 12. Pictures will appear on the PC monitor, and then click "YES", which should be done
                   within 30 seconds, otherwise step 7,8,9,10 have to be set again
    Step 13.  After the above step, follow the instructions from the PC monitor to save the setting.
    Step 14. Set audio output port, select Scart or AV Multi
    Step 15.  Confirm
    Step 16.  There are twice Confirming and Saving while setting PS3 console. After the setting,
                    games can be played without restarting;
